Baliza IO-Link

Baliza de Señalización IO-Link Programable con LED Multicolor

  • Productos de Red
  • IO-Link
  • Φ60
  • Continuous
  • Parpadeo
  • Destello
  • Alarmas
  • 88dB
  • Bajo Techo
  • IP65
  • Multicolor(21 colores)

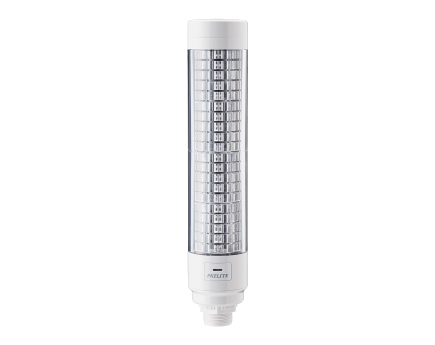

  • Baliza IO-Link LB6-IL
  • Baliza IO-Link LB6-IL
  • Baliza IO-Link LB6-IL
  • Baliza IO-Link LB6-IL

■3 modos de funcionamiento para cubrir numerosas aplicaciones

1. Modo Simple

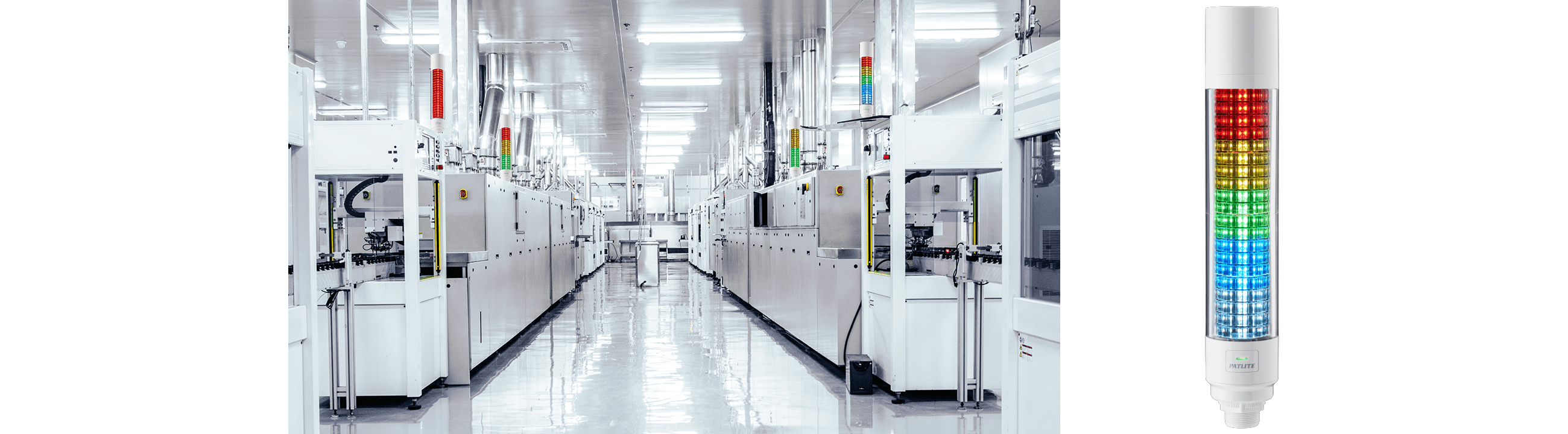

   Visualización del estado del equipo
     Divide sin esfuerzo el área de iluminación entre 1 y 5 niveles y configura los colores y patrones de destello de cada nivel.

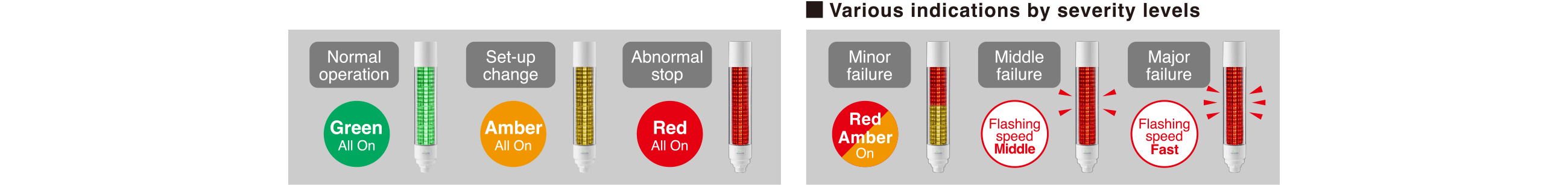

                            ■Diversas indicaciones por niveles de gravedad


2. Modo Indicación de Nivel

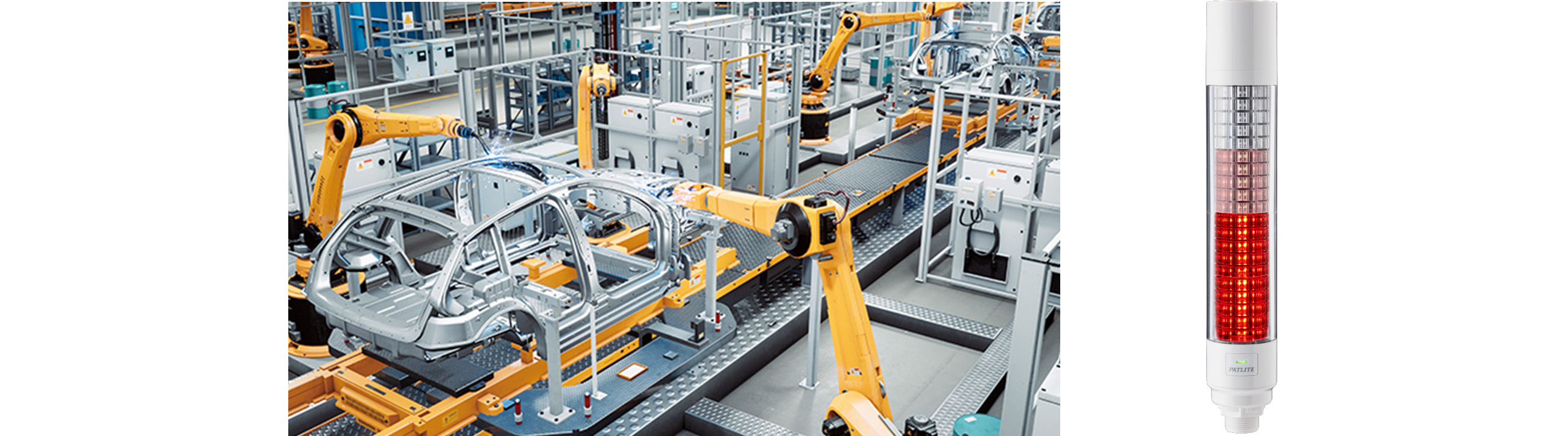

   Visualización de información de nivel del tanque y temperatura
     Se puede activar un patrón de iluminación predefinido dependiendo del nivel del tanque.
     Muestra fácilmente el momento de reabastecimiento de material y los cambios de estado de la máquina.

3. Modo de Animación
   Visualización del Takt-Time del proceso de fabricación
     Visualiza el tiempo transcurrido cambiando los colores predefinidos de abajo hacia arriba o de arriba hacia abajo.


■Conexión sencilla que reduce notablemente las horas-hombre

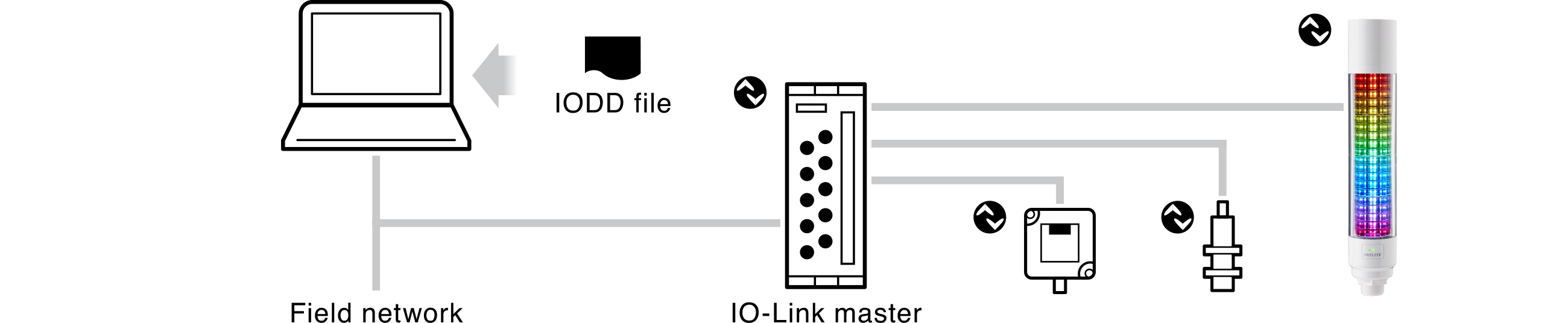

  Conecte sin esfuerzo la LB6 con solo un cable IO-Link sin necesidad de herramientas.
  La LB6 vuelve automáticamente a los ajustes predeterminados de fábrica cuando se conecta un cable de reemplazo.


  Diversas indicaciones son posibles con nuestra herramienta de configuración única y sencilla.

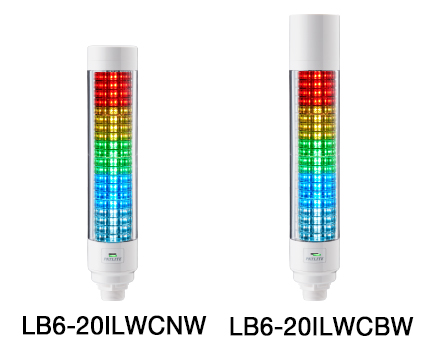

Modelo zumbador
LB6-20ILWCBW Con zumbador


Patrón de Iluminación


 Simple Mode            Level Mode           Animation Mode

(*) El servicio de descarga de los datos en este sitio se considera que acordó las siguientes condiciones "".

(*) El servicio de descarga de los datos en este sitio se considera que acordó las siguientes condiciones "".



Piezas de repuesto

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

B32310072-7F1 1

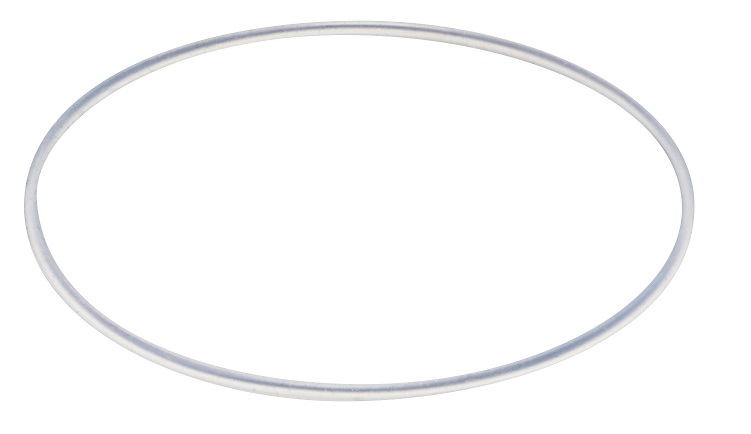

																O-ring: (5 pieces)
