· Lente híbrida en forma de prisma exclusiva de PATLITE: para mayor visibilidad desde cualquier dirección y de lejos.
· Aislación doble: para mejorar la durabilidad y la seguridad en el ámbito laboral.
· Instalación: montaje directo con un solo agujero.

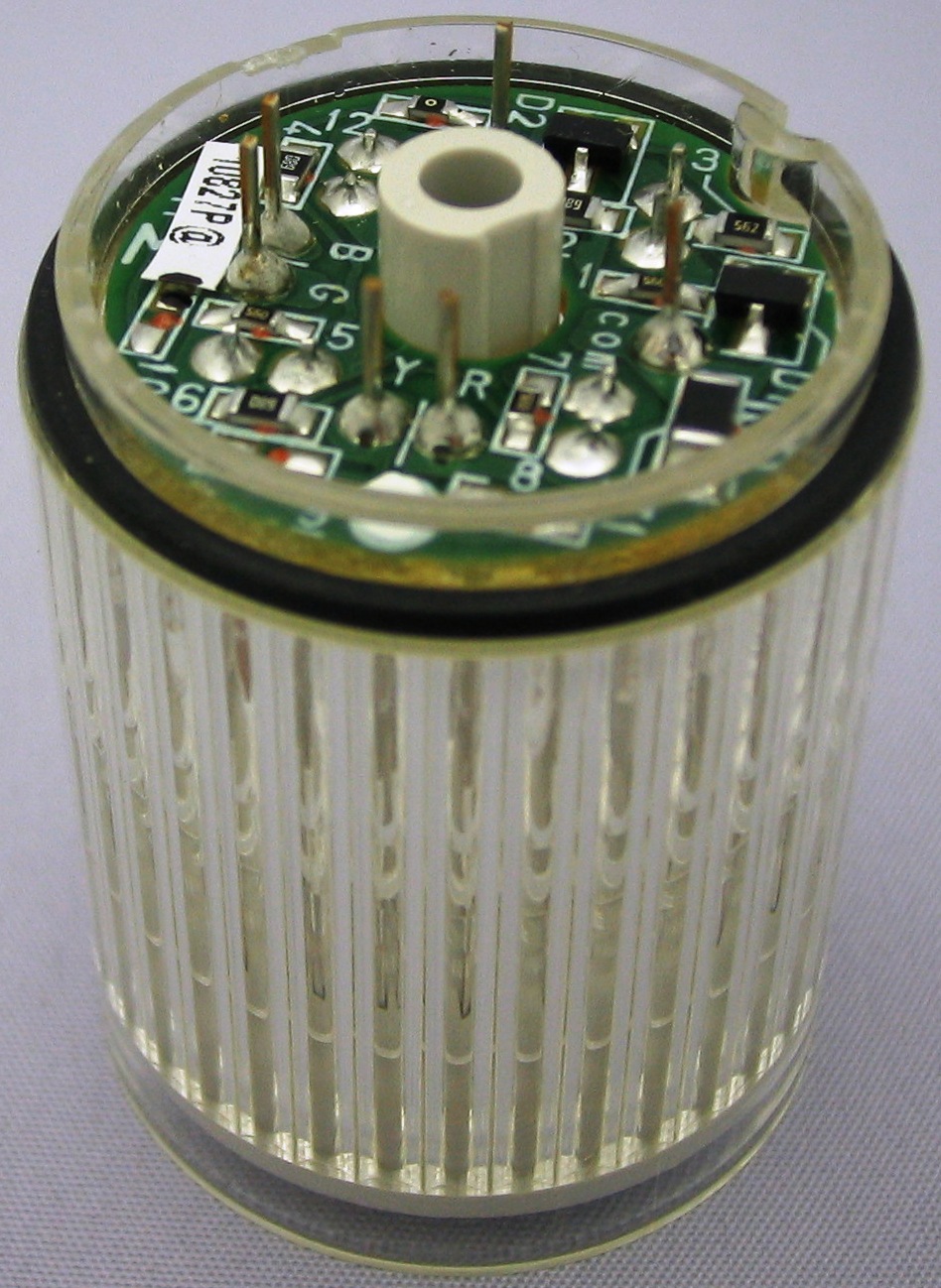

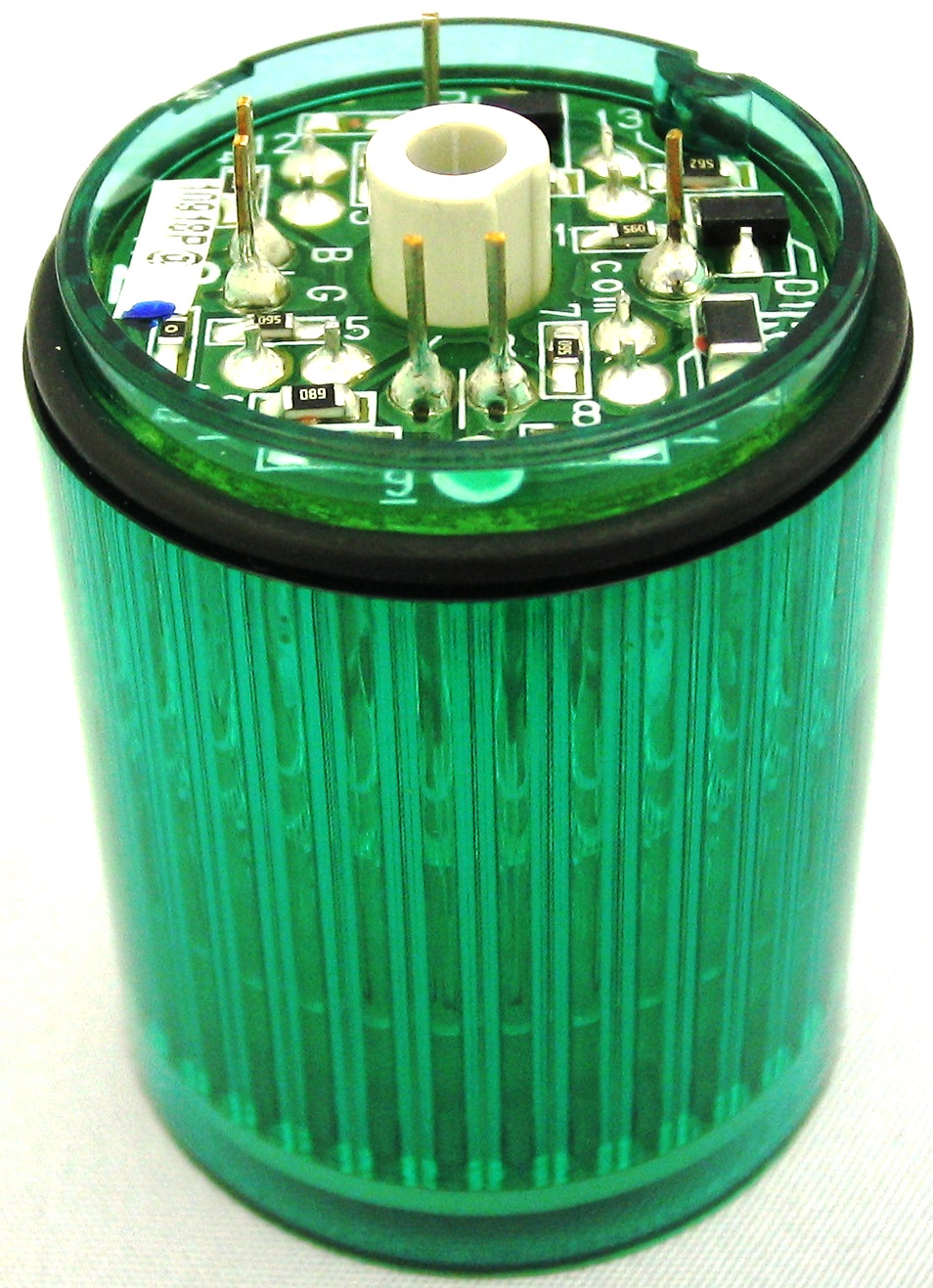

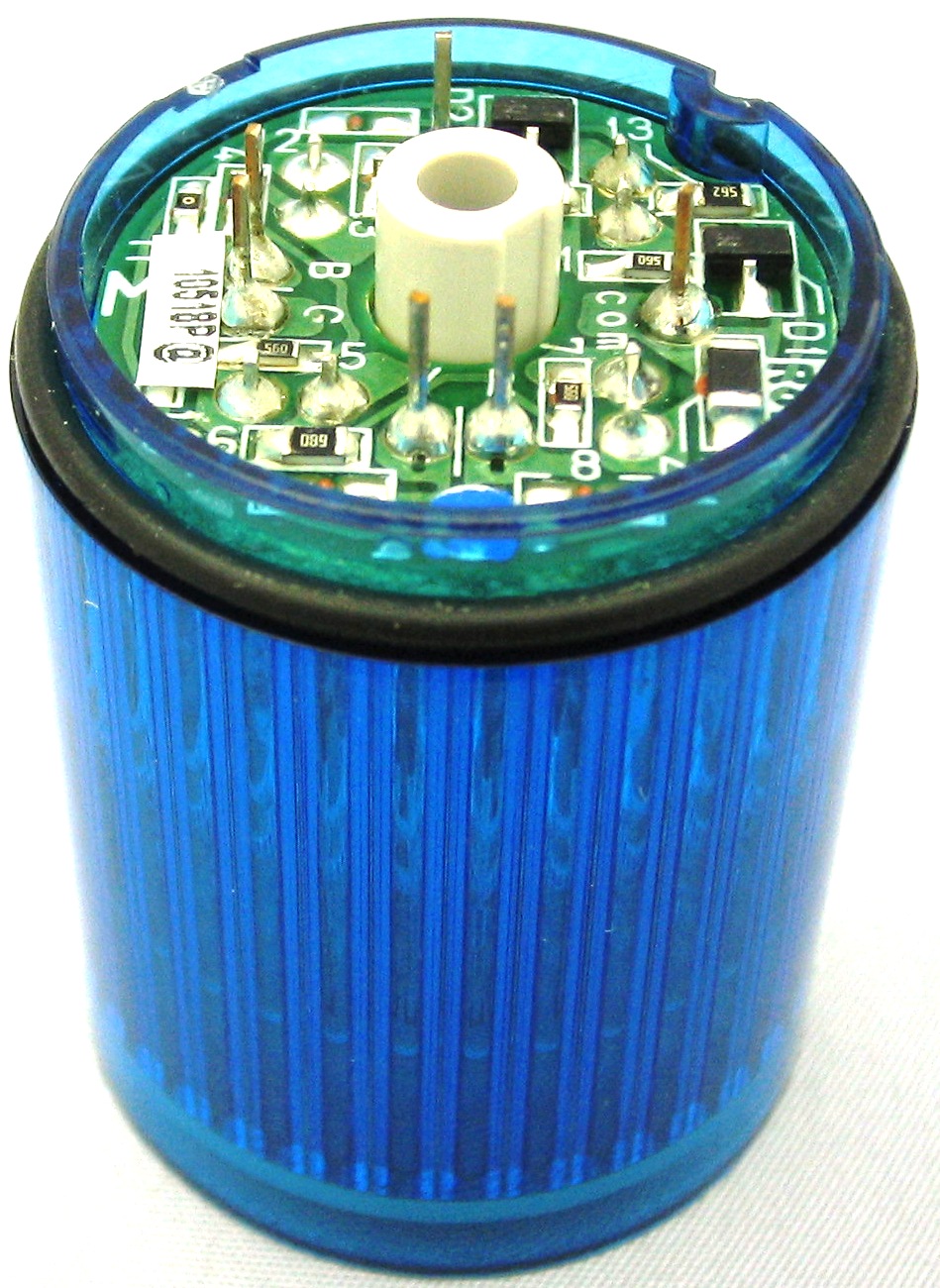

· Módulo LED intercambiable: no hay que recablear aun después de la instalación.
· Cuerpo: resina ABS de superior resistencia a los golpes y al calor.
· Lente: resina AS traslúcida de superior resistencia al clima.
· Colores disponibles: rojo, amarillo, verde, azul, claro/blanco.
DIMENSIONS | - 30mm diameter |
---|---|
RATED VOLTAGE | - 24V AC/DC |
FUNCTIONS | - Continuous Only - Dry contact closure such as switches or relay contacts - Open-collector transistor (NPN or PNP) for DC24V - Direct voltage control |
MOUNTING | - Direct mount only: includes M22 mounting nut and sealing gasket |
BODY STYLE | - Pre-assembled, pre-wired - Interchangeable and stackable module after purchase |
BODY COLOR | - Body: Silver |

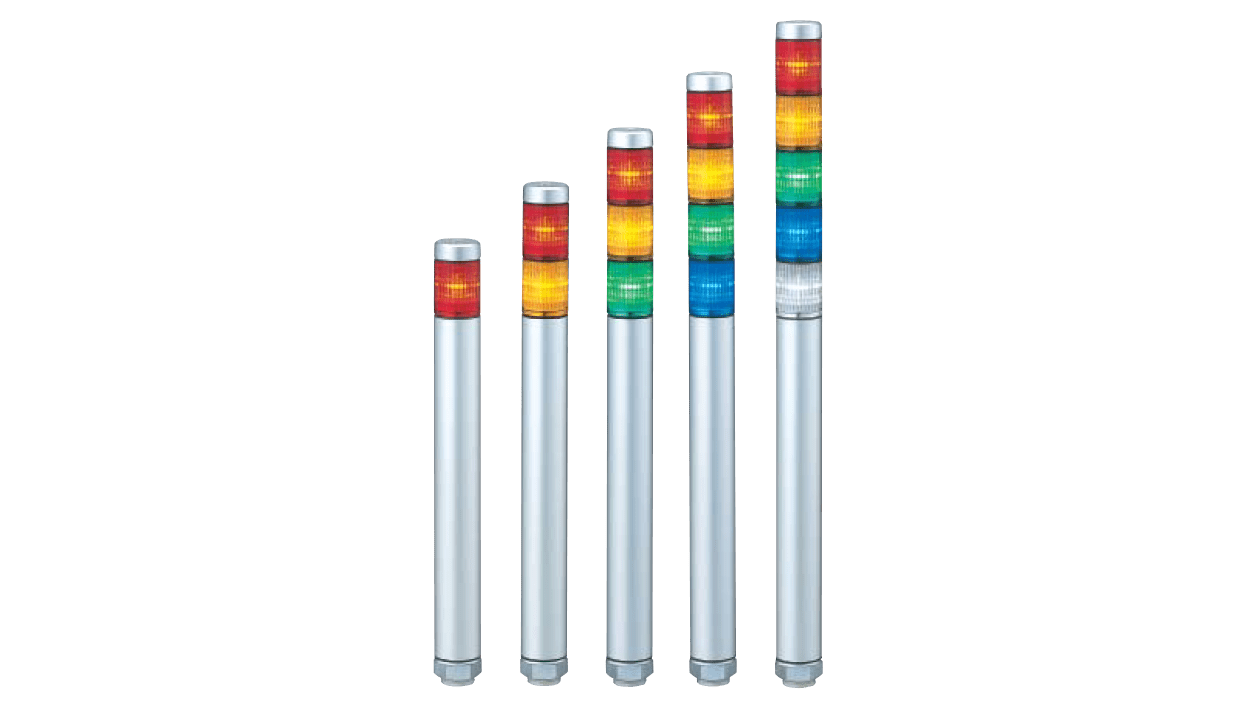

STACKABLE TIERS | - Up to 5 modules can be stacked |

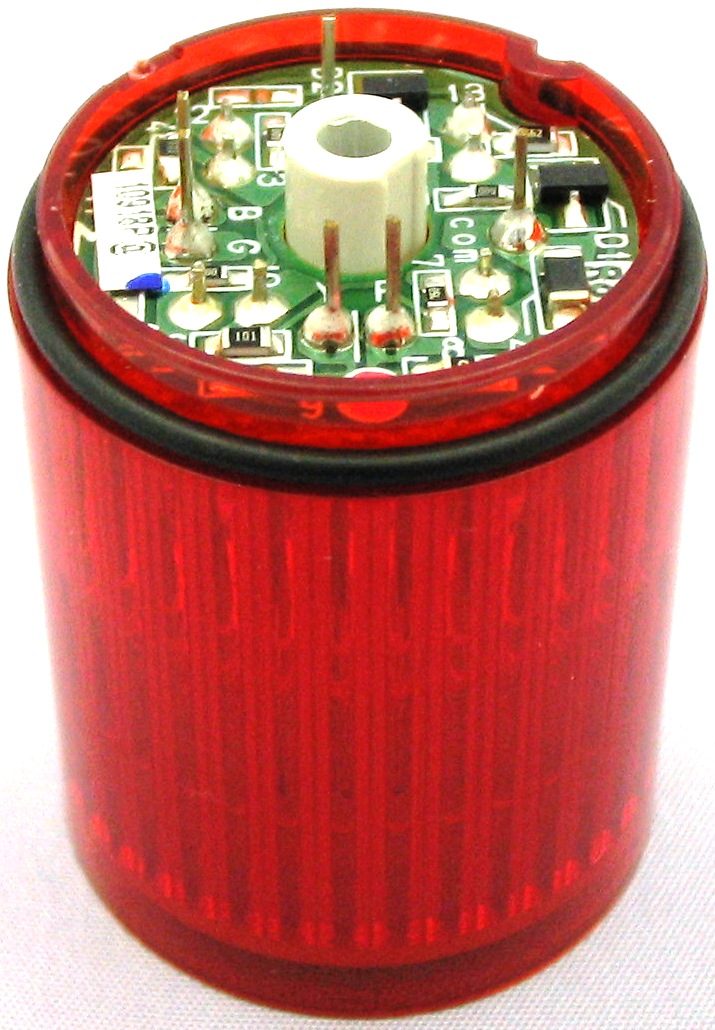

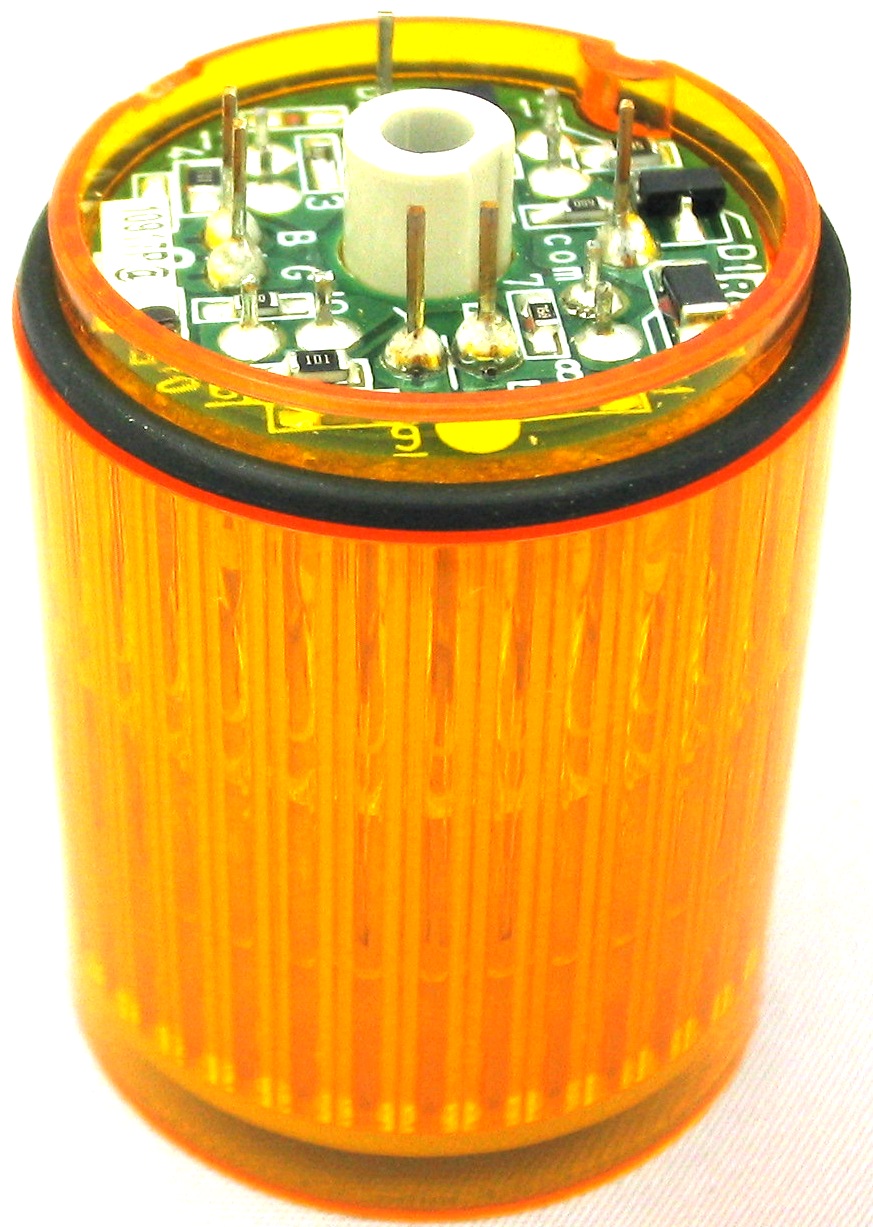

MODULE COLORS | - Red - Amber - Green - Blue - Clear |
CONFORMITY STANDARDS | - CE Marking - UL Component Recognition (US) - c-UL Component Recognition (Canada) - RoHS |
PROTECTION RATING | - IP 65 |
