Balza de Señalización para monitorización de la Red con notificaciones de voz
NHV4 / NHV6

Notifique los errores en dispositivos de la red y sistemas. Notificación instantánea con luz y sonido. Convierta datos de texto en mensajes de voz con la función Texto a Voz.

  • Productos de Red
  • Ethernet(RJ-45)
  • E/Sdigitales
  • Torre de señal
  • Φ40:NHV4
  • Φ60:NHV6
  • Continuoen/intermitente
  • Alarms /Campanilla/Voz
  • 88dBomás
  • Interior (Solo en posición vertical)
  • IP20
  • Rojo
  • Ámbar
  • Verde
  • Azul
  • Blanco
  • Balza de Señalización para monitorización de la Red con notificaciones de voz NHV4 / NHV6

Características del Producto

【Software】

  • Soporta varios protocolos de red.
    Informa inmediatamente sobre eventos y anomalías de dispositivos y sistemas de red con luz, sonido y voz.
  • Soporta protocolos seguros como HTTPS, SNMP v3, SSH. Comunicación segura con tranquilidad.
  • Este dispositivo está equipado con una función de "Texto a Voz (TTS)" que convierte datos de texto en voz.
    La información de texto se puede convertir en voz y registrar, y se puede realizar una notificación por voz en tiempo real mediante control por comando.
  • Equipado con una función de monitoreo de dispositivos SNMP además de monitoreo de estado activo/inactivo mediante monitoreo PING.
    Cuando se adquiere activamente la información MIB del dispositivo de red y se cumplen las condiciones establecidas, se notifica inmediatamente al administrador con luz y sonido.
  • Detección de Recepción de Correo
    La unidad NHV accede al servidor de correo y se ilumina o reproduce un mensaje cuando se reciben correos que cumplen con las condiciones preestablecidas.
    El NHV es capaz de leer el contenido de los correos detectados. (Solo en japonés/inglés/chino).
  • Para la detección de correos y el control en la nube, NHV requiere una conexión a Internet.
    Puede verificar fácilmente el estado de la conexión a Internet haciendo clic en un solo botón en la pantalla del navegador NHV.
  • Hemos desarrollado una "Aplicación de Configuración de Detección de Correo" que permite a los usuarios configurar los ajustes de correo siguiendo las instrucciones en pantalla.(Descargas de Archivos
  • Función de Enlace con PLC
    El dispositivo tiene la capacidad de establecer una conexión directa con los Controladores Lógicos Programables (PLCs), simplificando el proceso de envío de notificaciones de anomalías en los sitios de fabricación. (Compatible con PLCs de Mitsubishi utilizando el protocolo MC y PLCs de Omron utilizando el protocolo FINS)

【Hardware】

  • Notificación por voz.
    Combina mensajes predefinidos y configuraciones de entrada para transmitir información detallada.
  • Transmisión a todo el edificio utilizando la terminal LINE OUT que se puede conectar a equipos de transmisión como sistemas de megafonía, amplificadores o altavoces externos.
  • 4 ENTRADAS digitales y 2 SALIDAS digitales.(Solo NHV-D/NHV-DP)
  • Soporta alimentación PoE (Solo NHV-DP)

【Características del Modelo】

NHV (Modelo estándar)
El modelo básico de la serie NHV.
Alta seguridad de red.
NHV-D (Modelo D)
Modelo NHV estándar más 4 ENTRADAS digitales y 2 SALIDAS digitales.
Facilita la conexión con varios dispositivos digitales.
NHV-DP (Modelo DP)
NHV-D más capacidad de alimentación PoE.
Utilizando un switch PoE se permite la instalación con cableado reducido.
(Compatible con IEEE802.3at)
Modelo NHV NHV-D NHV-DP
Función de Atenuación
Control en la Nube
Enviar HTTP
Reproducción de Audio (MP3)
TTS (Texto a Voz)
I/O Digital (4 entradas/2 salidas)
Alimentación PoE ※Compatible con IEEE802.3at
Función de Detección de Correo



【Métodos de Instalación Variados】

 Un soporte de montaje en pared también está disponible como accesorio opcional.
  Soporte de Montaje en Pared  :NH-001
  Soporte de Montaje en Tabique:NH-002

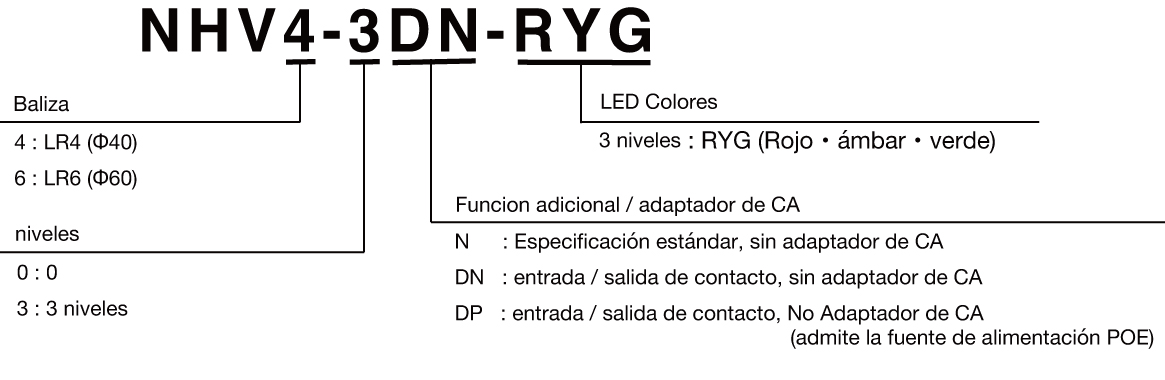

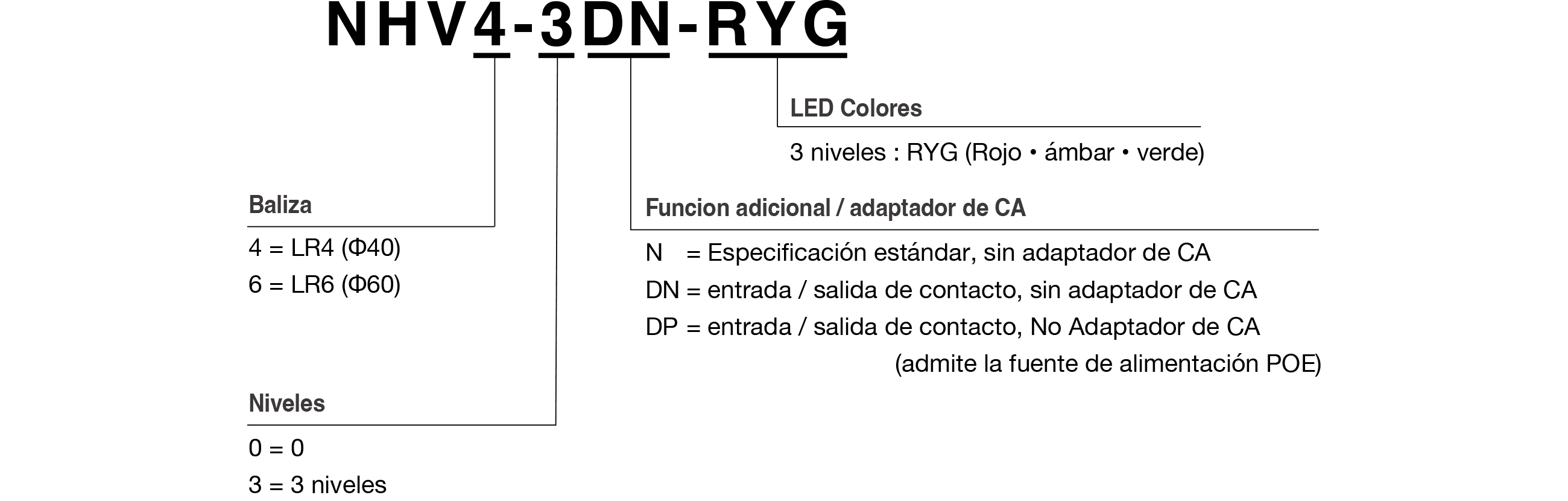

Model Code
