Baliza de Señalización(Φ100)
LR10

Baliza de Señalización con varios patrones de iluminación y apta para uso en exteriores

  • control de contacto
  • Conector M12
  • Balizas de Señalización
  • Φ100
  • Alarms
  • 92dB
  • IP66
  • IP69K
  • Rojo
  • Ámbar
  • Verde
  • Azul
  • Blanco

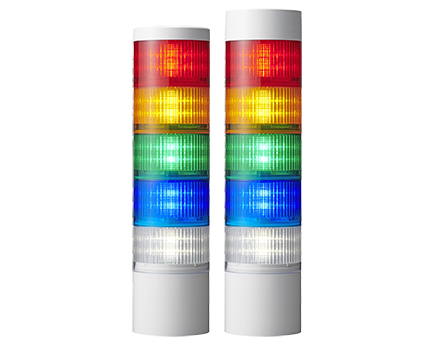

  • Baliza de Señalización(Φ100) LR10
  • Varios patrones de señalización
    Continuo, Intermitente, Triple Destello y Giratorio

    Además de los intermitentes y continuos, que están disponibles con balizas estándar, se añadieron destellos y rotación sin motor.
    Se pueden elegir los modos de iluminación óptimos según sus requisitos.
    Seleccione aquí para ver un video que muestra los patrones de iluminación.

  • Cumple con IP66/69K
    Fiable incluso en entornos hostiles

    La clase más alta de rendimiento a prueba de agua y polvo en Balizas de Señalización.
    No solo se puede usar en exteriores, también se puede usar de manera segura en fábricas de alimentos y otras instalaciones.


    《Grado de Protección》

    IP6X: tipo resistente al polvo (evita completamente la entrada de polvo).
    IPX6: Protección contra chorro violento
       (chorros de agua potentes con boquillas desde todas las direcciones)
    IP69K: No debe haber entrada de agua cuando una unidad de prueba se somete a agua
       caliente a 80 ℃ descargada a través de una boquilla de forma específica a una
       presión de agua de 80-100 BAR y un caudal de 14-16 litros/minuto.
       Además, la distancia entre la unidad de prueba y la boquilla es de 10 a 15 cm, y el agua se descarga durante 30 segundos en cada
       dirección, 0, 30, 60 y 90 grados, mientras la unidad de prueba gira en un plano horizontal.

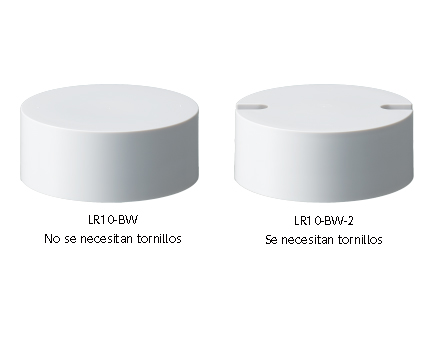

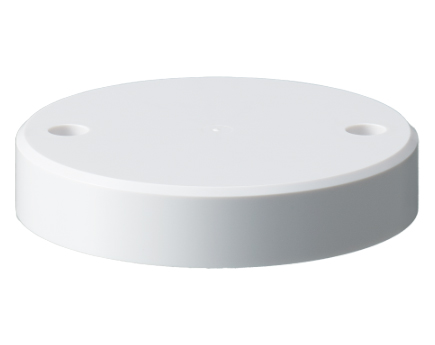

  • Están disponibles como opciones, la tapa de cubierta y el módulo zumbador con fijaciones atornilladas.

    La tapa de cubierta y el módulo zumbador están disponibles con fijaciones atornilladas para evitar que se caigan.

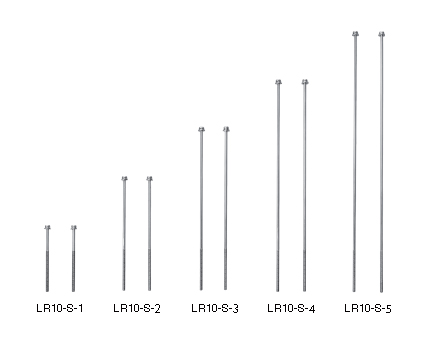

    Se pueden usar los tornillos utilizados en la unidad premontada, por lo que solo se debe reemplazar la unidad superior.

 Póngase en contacto con su Distribuidor para conocer las diferentes combinaciones.



Aplicaciones





Lista de Productos

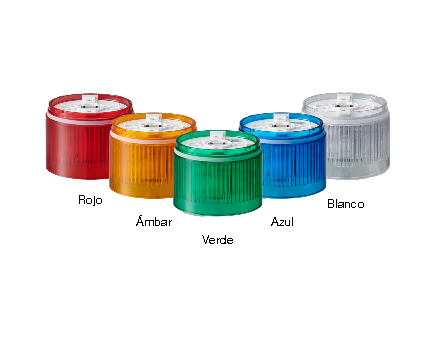

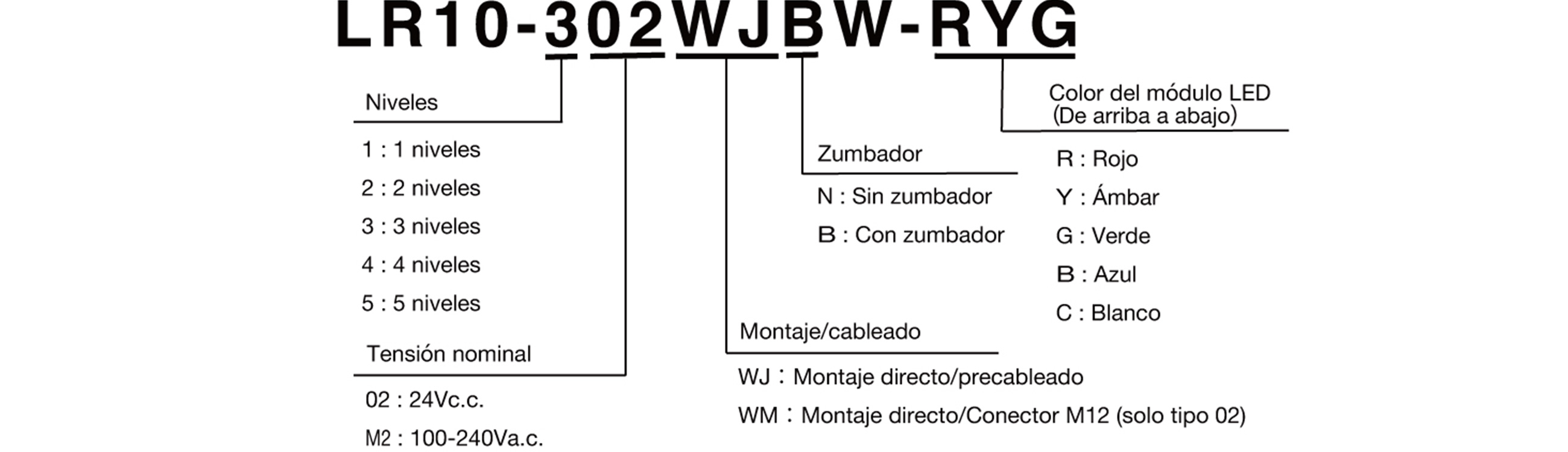

Modelo Niveles Tensión nominal zumbador Color luminoso
LR10-102WJNW-R/Y/G 1 24Vc.c. Sin Rojo/ Ámbar/ Verde
LR10-202WJNW-RY/RG 2 Rojo, Ámbar/ Rojo, Verde
LR10-302WJNW-RYG 3 Rojo, Ámbar, Verde
LR10-402WJNW-RYGB 4 Rojo, Ámbar, Verde, Azul
LR10-502WJNW-RYGBC 5 Rojo, Ámbar, Verde, Azul, Blanco
LR10-1M2WJNW-R/Y/G 1 100-240Va.c Rojo/ Ámbar/ Verde
LR10-2M2WJNW-RY/RG 2 Rojo, Ámbar/ Rojo, Verde
LR10-3M2WJNW-RYG 3 Rojo, Ámbar, Verde
LR10-402WJBW-RYGB 4 Rojo, Ámbar, Verde, Azul
LR10-502WJBW-RYGBC 5 Rojo, Ámbar, Verde, Azul, Blanco
LR10-102WJBW-R/Y/G 1 24Vc.c. Con
zumbador
Rojo/ Ámbar/ Verde
LR10-202WJBW-RY/RG 2 Rojo, Ámbar/ Rojo, Verde
LR10-302WJBW-RYG 3 Rojo, Ámbar, Verde
LR10-402WJBW-RYGB 4 Rojo, Ámbar, Verde, Azul
LR10-502WJBW-RYGBC 5 Rojo, Ámbar, Verde, Azul, Blanco
LR10-1M2WJBW-R/Y/G 1 100-240Va.c Rojo/ Ámbar/ Verde
LR10-2M2WJBW-RY/RG 2 Rojo, Ámbar/ Rojo, Verde
LR10-3M2WJBW-RYG 3 Rojo, Ámbar, Verde
LR10-4M2WJBW-RYGB 4 Rojo, Ámbar, Verde, Azul
LR10-5M2WJBW-RYGBC 5 Rojo, Ámbar, Verde, Azul, Blanco
LR10-302WMNW-RYG 3 24Vc.c.
(Conector M12)
Sin Rojo, Ámbar, Verde
LR10-02WJNW 0 24Vc.c. Sin Sin
LR10-M2WJNW 0 100-240Va.c Sin Sin
LR10-WMNW 0 24Vc.c.
(Conector M12)
Sin Sin

(*) El servicio de descarga de los datos en este sitio se considera que acordó las siguientes condiciones "".

(*) El servicio de descarga de los datos en este sitio se considera que acordó las siguientes condiciones "".

LR10  

LR10  

Piezas de repuesto

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement
Headcover
GA0001577-F1 1
Mounting Gasket
GA0001587-F1 1
Gasket
GA0001588-F1 2~7  Depends on the number of tiers.
