Unidad de Control Inalámbrico

Notificación Remota Sencillacon la Unidad de Control Inalámbrico

  • Productos Inalámbricos
  • Control de E/S
  • Inalámbrico (Bluetooth 5.0)
  • Φ60
  • Bajo Techo
  • Unidad de Control Inalámbrico WIO
  • Unidad de Control Inalámbrico WIO
  • Unidad de Control Inalámbrico WIO
  • Unidad de Control Inalámbrico WIO

No se requiere PC ni software.

Comunicación inalámbrica fiable con Bluetooth® de largo alcance
Cobertura inalámbrica de hasta 100 metros en línea de visión,
con una función de repetidor que permite comunicación a larga distancia de hasta 400 metros!

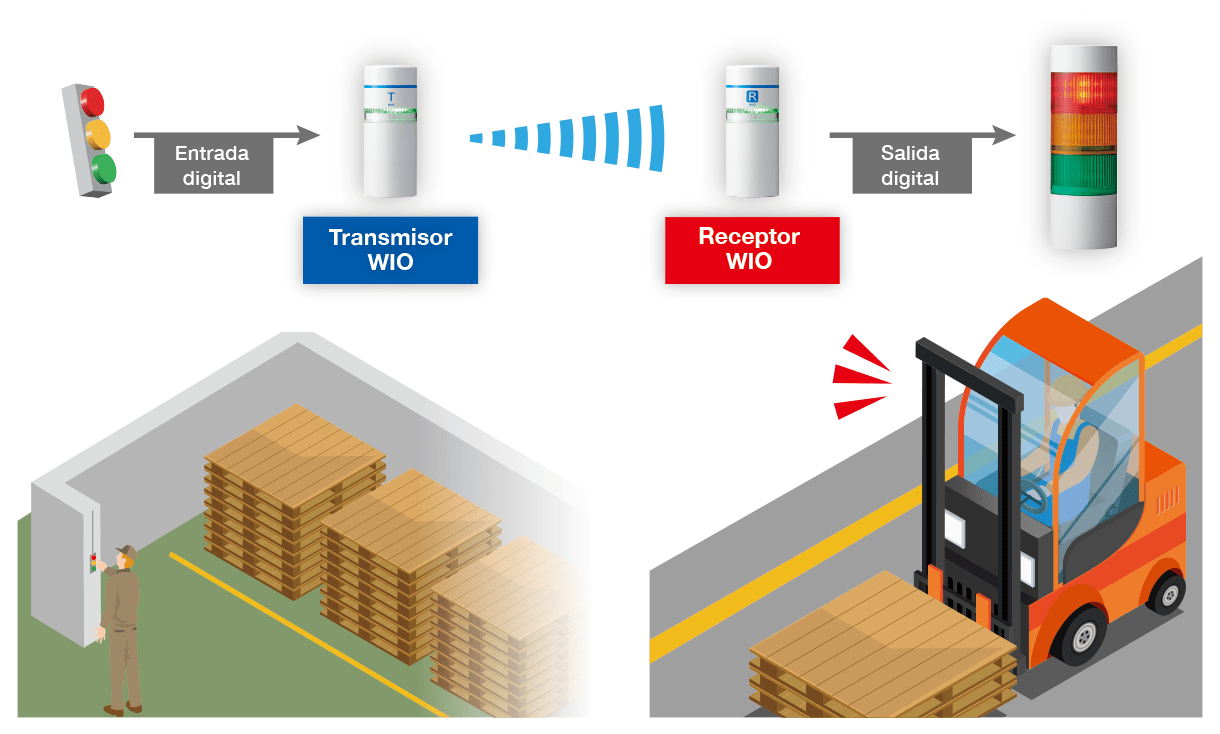

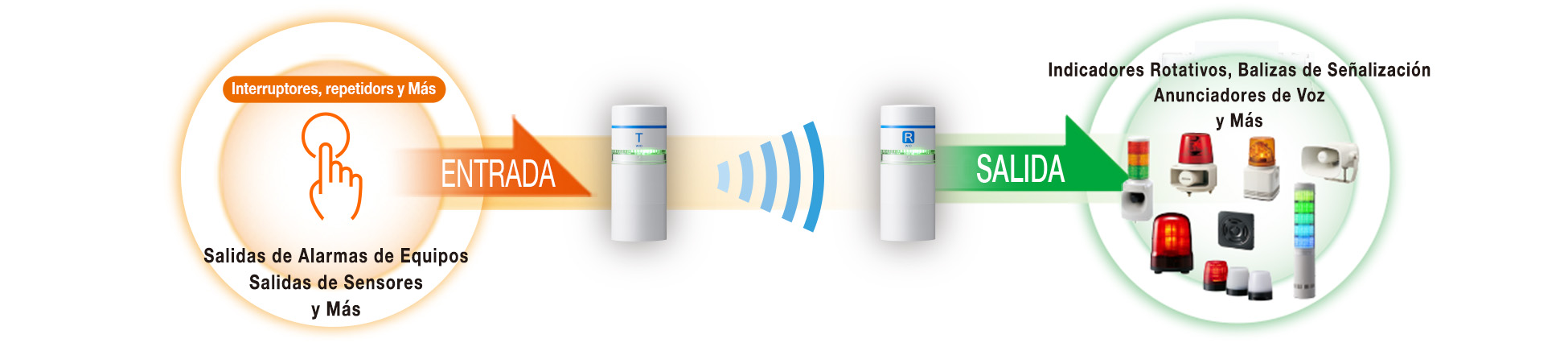

① ¡ Alertas a Indicadores Rotativos, Balizas Luminosas, Anunciadores con Sintetizador de Voz y más !

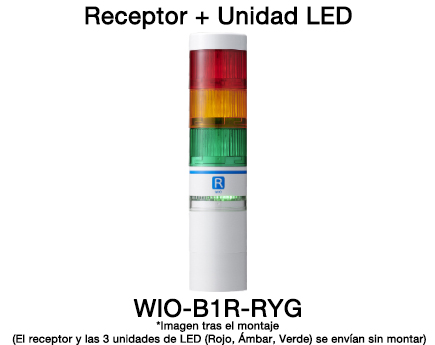

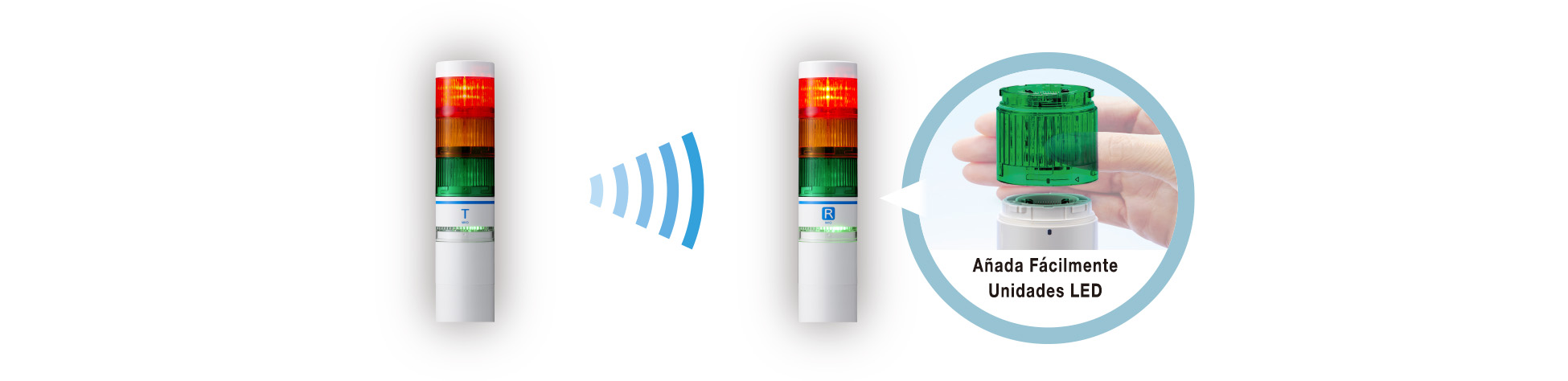

② ¡ Refleje el Estado del Dispositivo con Unidades LED Adicionales !

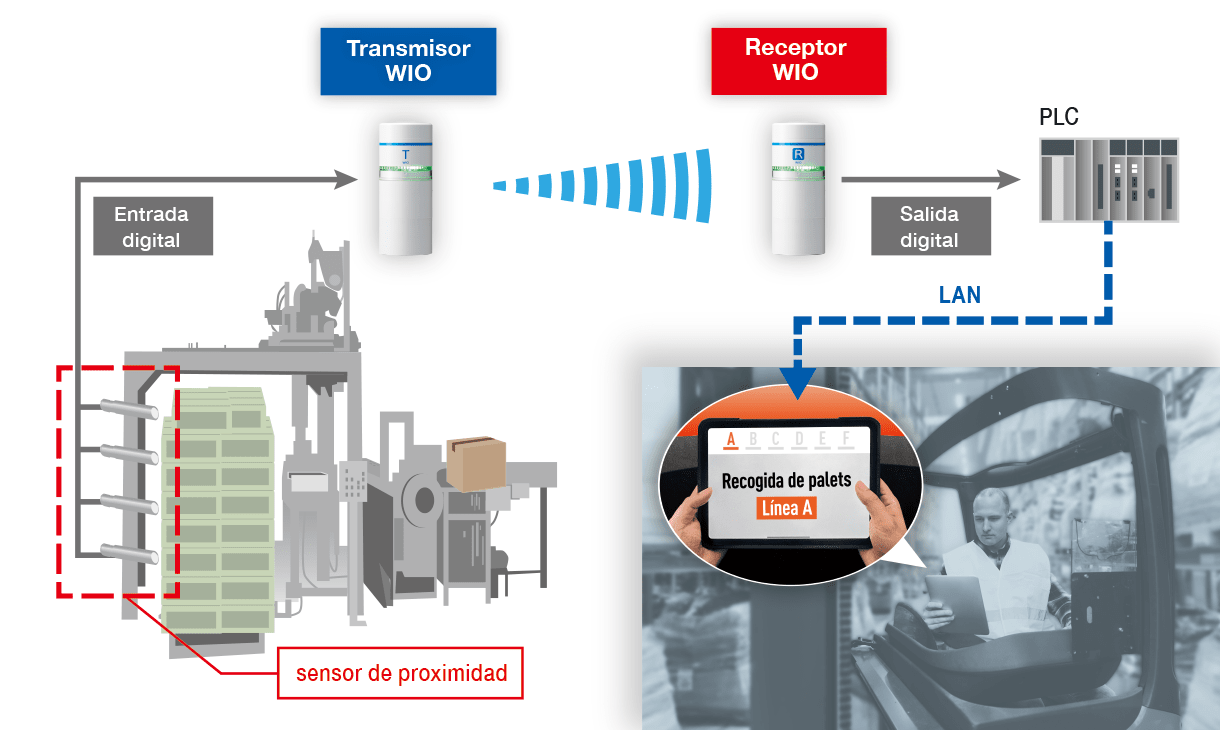

Sistema de Notificación Simple

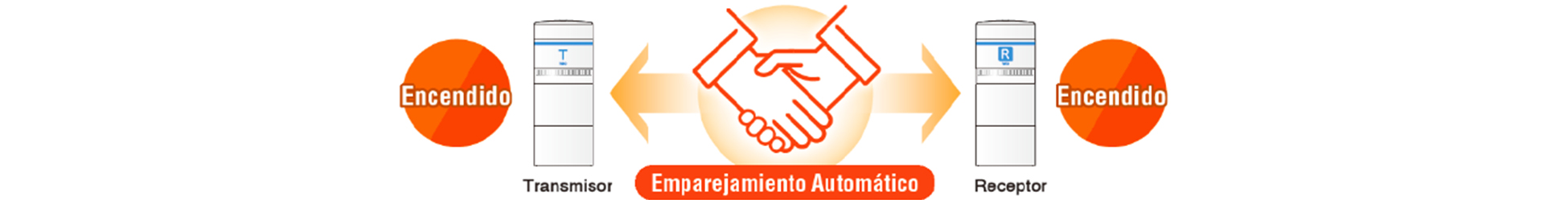

■ Conectar y Listo para un Inicio Fácil

El emparejamiento se completa cuando se enciende la alimentación. No se requiere configuración y puede comenzar a usarlo de inmediato.
El alcance inalámbrico es de hasta 100 metros en línea de visión.

■ Comunicación Inalámbrica Fiable

Utilizando la comunicación Bluetooth® de Largo Alcance, garantizando una comunicación estable a larga distancia.

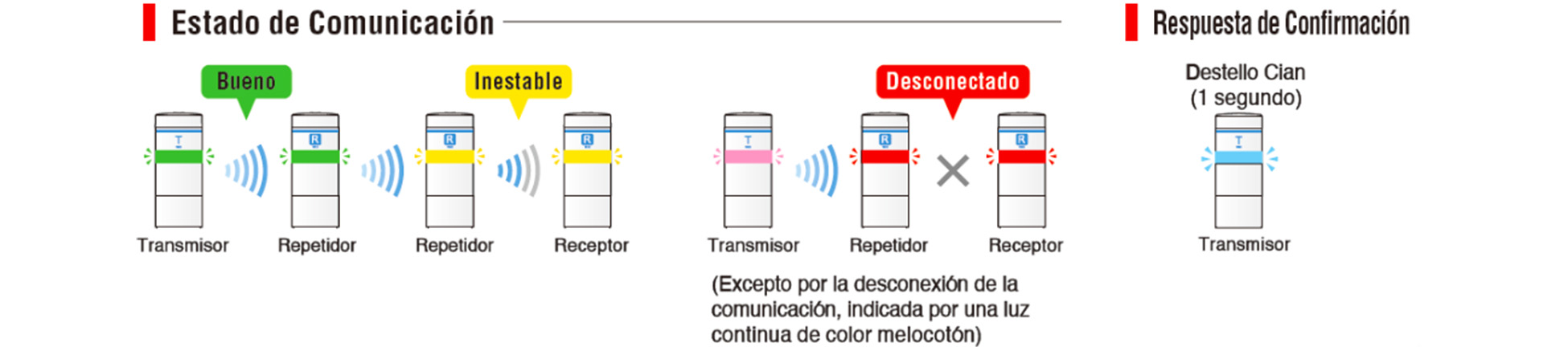

Puede verificar el estado de la comunicación con colores indicadores.

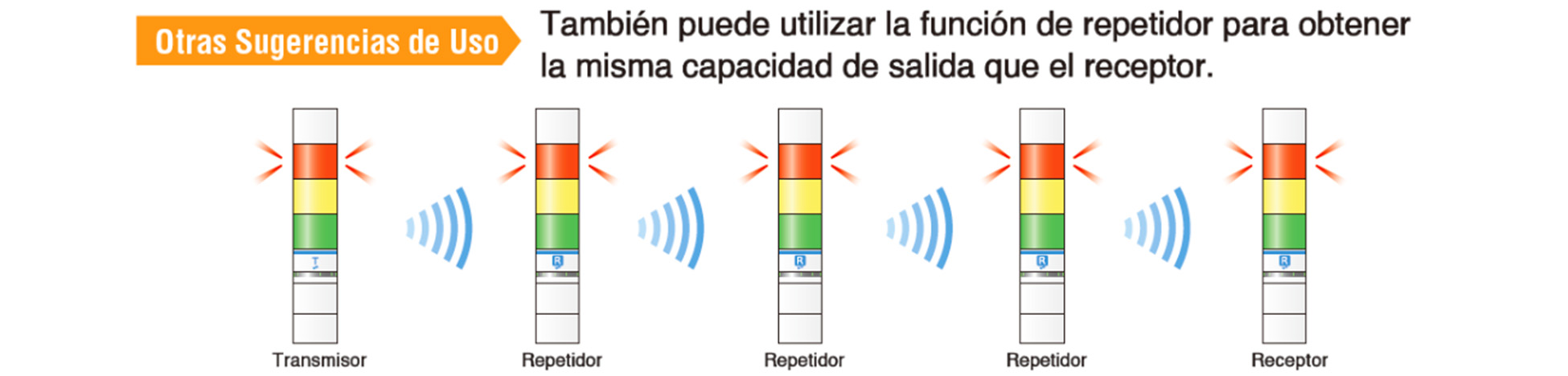

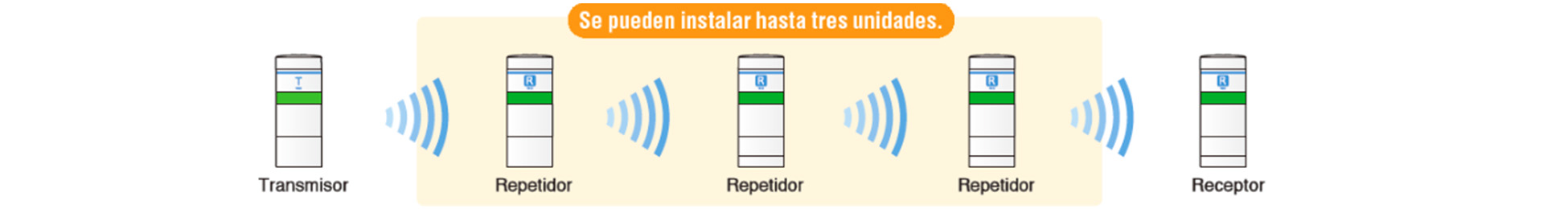

■ Función de Repetidor

Puede utilizar el receptor como un repetidor* para ampliar el alcance inalámbrico hasta 400 metros.
*Configurable mediante el interruptor deslizante del receptor

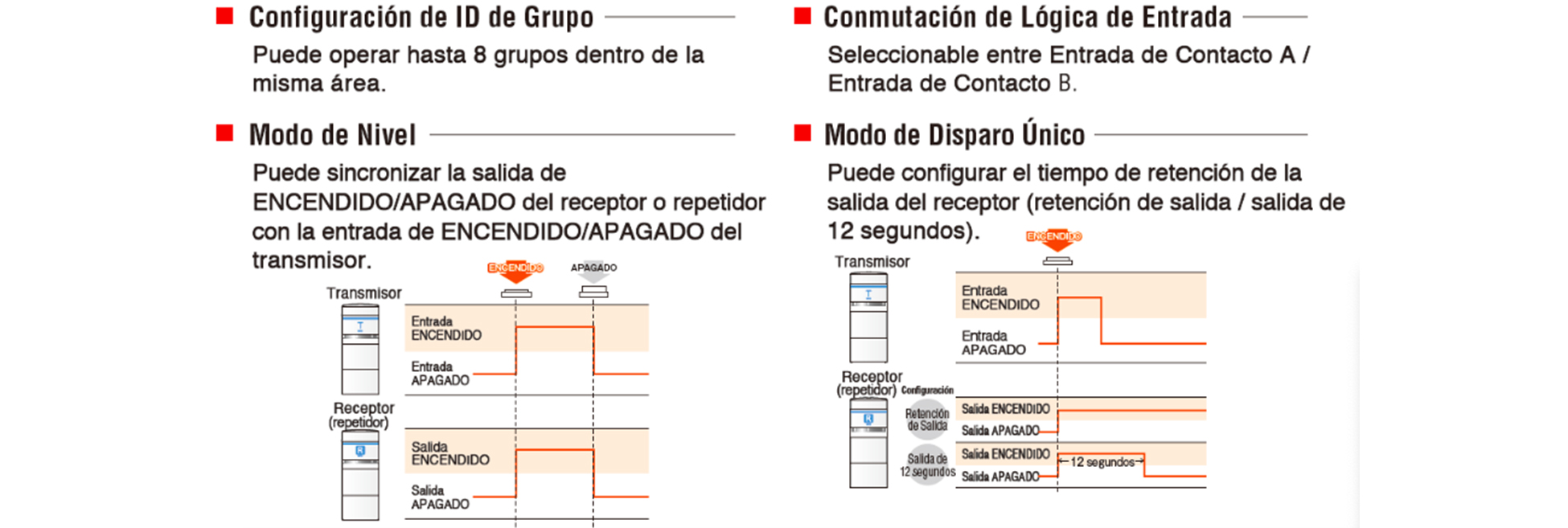

■ Configuración Sencilla

Puede configurar fácilmente los ajustes con el interruptor de ajustes de la unidad principal.

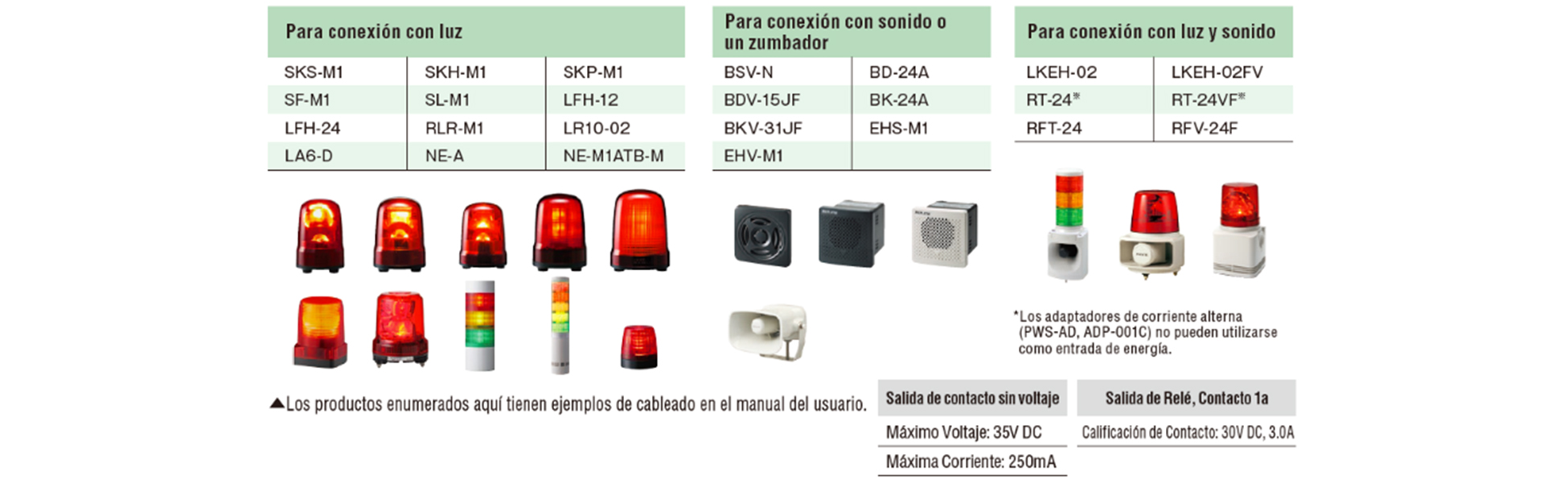

■ Dispositivos de Notificación Conectables

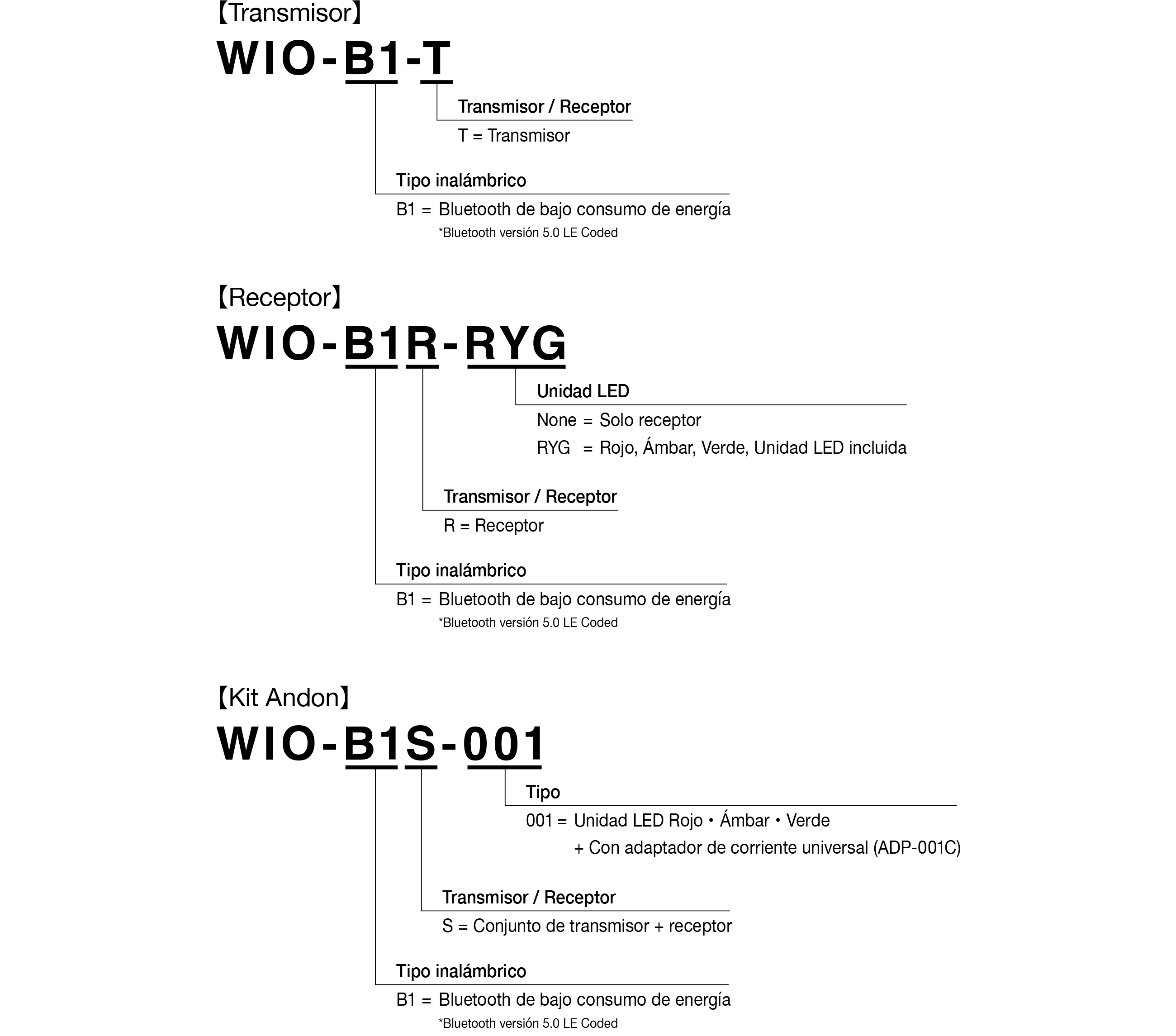

【Modelo / Resumen del contenido】




Unidad LED

Adaptador de CA Universal

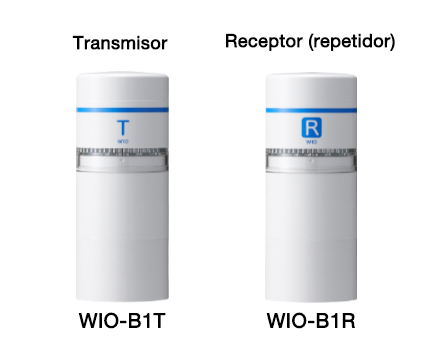

WIO-B1T × × ×


WIO-B1R × × ×

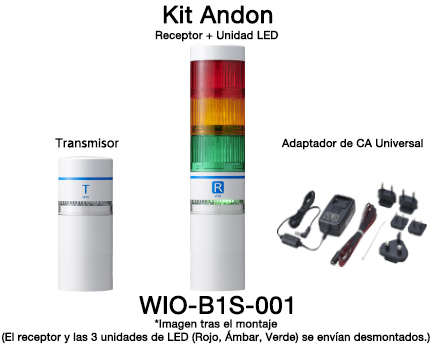

Kit Andon


(*) El servicio de descarga de los datos en este sitio se considera que acordó las siguientes condiciones "".

(*) El servicio de descarga de los datos en este sitio se considera que acordó las siguientes condiciones "".



Piezas de repuesto

Category No. Part Name Part Number Required Qty Specification Approximate time of replacement

																O-ring: LR6 (5 pieces)
B25110067-F1 2~5 Depends on the number of tiers.
